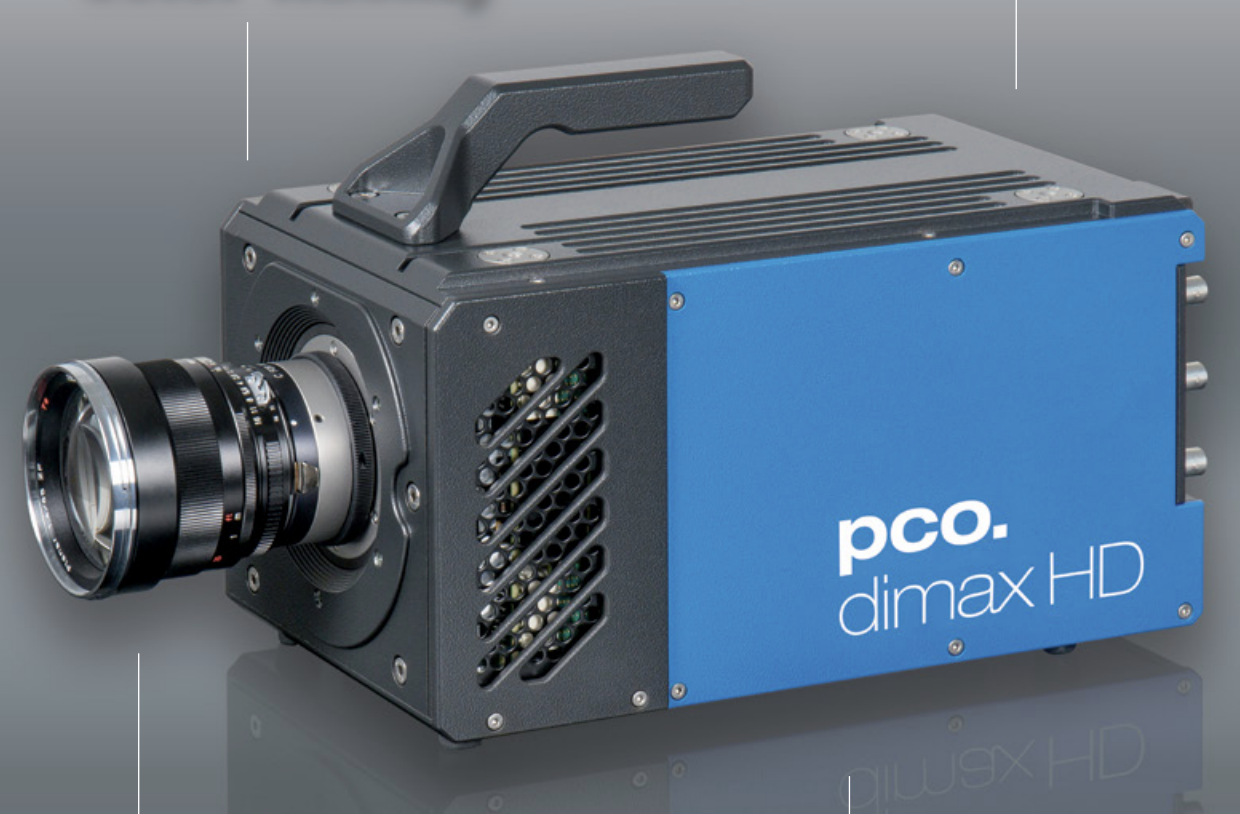

pco.dimax HD/HD+

The pco.dimax HD series combines advanced CMOS and camera technology. High light sensitivity and best dynamic range complement each other to brilliant Full-HD images – with frame-rates of more than 2000fps.

Especially for automotive car safety tests the HD+ version with 1920 x 1440 pixels offers an aspect ratio of 4:3 to display full scale crash- or sled testing scenarios. Both models provide a variety of trigger options and synchronization possibilities.

For more information, see product data sheet

Key Features:

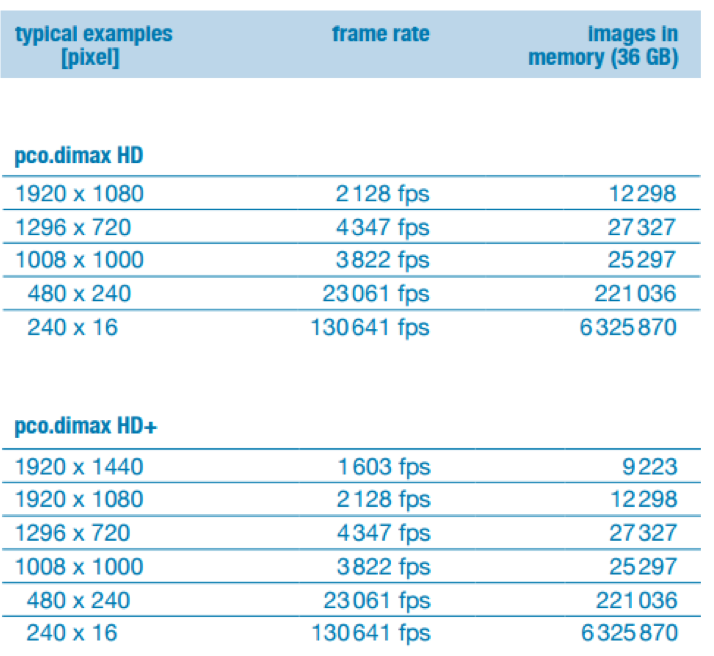

  • 2128 fps @ Full HD resolution (1920 x 1080 pixel)
  • 1603 fps @ 2.8 MPix resolution (1920 x 1440 pixel)
  • 3822 fps @ 1.0 MPix resolution (1008 x 1000 pixel)
  • 12 bit dynamic range
  • excellent image and color quality
  • no additional black reference calibration required
  • exposure time range 1.5 µs – 40 ms
  • multiple trigger options
  • master-slave camera synchronisation (up to 5 cameras)
  • IRIG B timecode function
  • image memory in camera (camRAM up to 36 GB)
  • interfaces: USB 3.0, GigE/USB 2.0, HD-SDI, Camera Link
pco.camware 4 is an application-oriented camera control software allowing for:
  • controlling multiple cameras
  • clear arrangement and ease of use
  • storable and reloadable camera and test settings
  • burned-in time stamp with editable text
  • low light preview function
  • fluent live images of all cameras
  • easy playback and video export of recorded sequences
